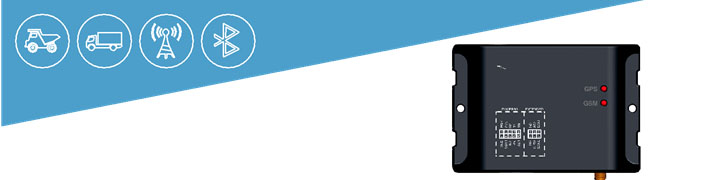

Jetone Hawk Pro
GPRS/GPS SeriesEconomical Battery Backup GPS Tracking Unit
JetoneTracker Hawk PRO is a full-featured vehicle tracking product de-signed for easy and reliable installation in automobiles. The Hawk PRO is an ide- al solution for basic fleet, automotive insurance, stolen vehicle, vehicle finance, auto rental and other vehicle track and trace applications where an internal back-up battery is required.
Competitive Price, Competitive Technology, Competitive Edge
The Hawk PRO high-value tracking unit from Softcruise features a small size with superior GPS performance, an optional internal 180 mAh or 1000 mAh back-up battery, 3-axis accelerometer for motion and tilt sense, ultra low sleep modes, Inputs/Outputs (I/O) for various applications. The Hawk PRO is a complete vehicle tracking and communications device incorporating next-gen-eration, supersensitive
GPS technology on GSM/GPRS cellular networks for installation in any 12 or 24 volt vehicle. Superior internal antennas for both cellular and GPS eliminate the need for wired antennas and make the Hawk PRO mountable virtually anywhere in the vehicle for easy, inexpensive installations. Messages are trans-ported across the cellular network using SMS or TCP messaging providing a reliable communications link between the device and your application servers. The Hawk PRO is designed to dramatically reduce cost, power and size while providing excellent reliability.
Flexibility
The Hawk PRO employs Softcruise advanced industry leading on-board alert engine, CEG™ (Customizable Event Generator) to monitor external conditions and support customer-defined exception-based rules to meet your application requirements. CEG monitors the vehicle environment and responds instan-taneously to pre-defined threshold conditions related to time, date, motion, location, geo-zone, input and other event combinations. This behaviour can be Programmed by Softcruise before shipment, at a customer’s facility, or over-the-air once the unit has been fielded.
Over-The-Air Serviceability
The Hawk PRO leverage’s Softcruise management and maintenance system, UCLS™ (Updates, Configuration, and Logistics System), for over-the-air con-figuration parameters, CEG rules, and firmware. The Hawk PRO offers out-of-the-box hands free configuration and automatic post-installation upgrades that can monitor unit health status across your customers’ fleets and identify issues before they become expensive problems.
Experience The Advantage
HawkTM Specifications
General
| Network Technology | GSM/GPRS |
| Data Modes | TCP Packet data and SMS |
| Location Technology | 66 channel GNSS |
| Operating Voltage | 12 and 24 volt vehicle systems |
GPS
| Location Technology | GPS, GLONASS, and QZSS capable |
| Enhancement Technology | SBAS: WAAS, EGNOS, MSAS, GAGAN |
| Receiver Type | 66 channels |
| Tracking Sensitivity | –162 dBm |
| Acquisition Sensitivity | –145 dBm |
| Location Accuracy | 3.0m |
| Location Update Rate | up to 10Hz |
| AGPS / Location assistance capable | Anti-jamming |
Cellular
| Data Support | SMS, TCP Packet data |
| Operating Bands (MHz) | GSM/GPRS 850/900/1800/1900 |
| Transmitter Power | |
| GSM/GPRS |
Class 4 (2 W at 850/900MHz) Class 1 (1 W at 1800/1900MHz) |
Comprehensive I/O
| Digital Inputs | 6 Positive |
| Digital Outputs | 2 open collector (150mA) |
| Analog Input |
2 External ADC input 2 Internal VCC monitor |
| 1-Wire |
1 Input (Supporting 5 Temperature Sensors, iButton Sensor & RFID) |
| Status LED’s | GPS and Cellular |
Certifications
| Fully certified |
Electrical
| Input Voltage |
9-32 VDC (startup, operating) 7-32 VDC (momentary) |
| Power Consumption |
<2mA at 12/24 VDC (deep sleep) <20mA at 12/24 VDC (radio-active sleep) <25mA at 12/24 VDC (idle IP connection transmit) <115mA at 12/24 VDC (continuous Transmit) |
| Back Up Battery | (Optional) Lithium-Ion 180 mAh or 1000 mAh |
Development Support Options
| Customized hardware and software development available on request |
Environmental
| Temperature |
-30° to +75° C (connected to primary power) -40° to +85° C (storage) |
| Humidity | 95%RH at 50° C non-condensing |
| Shock & Vibration | U.S. Military Standards 202G and 810F, SAE J1455 |
| EMC/EMI | SAE J1113; FCC-Part 15B; Industry Canada |
| RoHS Compliant |
Physical
| Dimensions | 2.125 x 3.5 x 0.93”, (54 x 89 x 24mm) |
| Weight | 2.9o (82g) |
| Connectors, SIM Access | |
| Connection Type | Captive 10 wire harness |
| SIM Access | Internal |
| External GPS | optional SMA (with tamper monitoring, 3V) |
| External Cellular | optional SMC |
Mounting
| Standard tie-wrap or adhesive, Screw mount bracket |
